K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
  • K-999 K-436-D KTP4 4+1+1 number calling system
Loading...
K-999 K-436-D KTP4 4+1+1 number calling system
  • 品牌 : Ycall
  • 简介 : K-999 K-436-D KTP4 4+1+1 number calling system
  • Name : K-999 K-436-D KTP4 4+1+1 number calling system
  • Model : K-999 K-436-D KTP4 4+1+1

  • product introduction
  • message

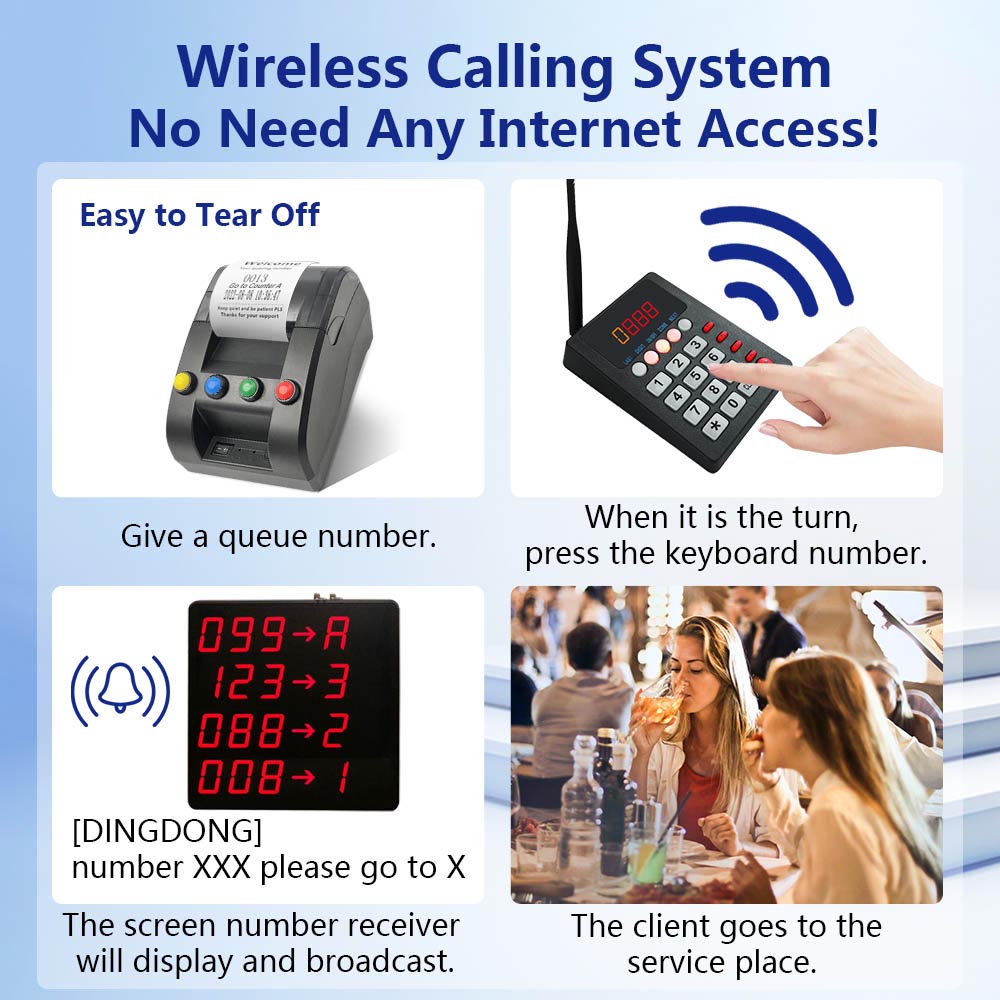

How Queue Management System works?

1. Customer go to the Service station and take a number ticket by Thermal Printer (K-TP).

2. Customer wait for their service.

3. When it is their turn, the counter worker will press the number+ENT to call.

4. The customer's number will show on the display screen with prompt sound, so that customer know which counter they should attend.


A complete kit includes:

(1) Display Monitor

To display ticket number .

(2) Keyboard

To call ticket number .

(3)Thermal Printer

To make the tickets for the customer

(4) Manual


Features:

1 Applications: Restaurant, Coffee Shop, Fast food Chain, Food Court, KTV, Pub, Service Centre, Clinic, Supermarket.Provides fair, organized, efficient customer service

2 It call number from 001-999.It can call back any number and recall any number.It with a next key,press Next+ENT ,then number will goes to next number.

3 Advantage: can avoid to stand in a long queue

K-436-D 适用场所.jpg

K-436-D display specification :

LED counter display labeled with Counter Number

1.Wireless signal receiver

2.Show 3-digit for display ticket number and 1 digit for counter number                   (1 line, 2 lines and 4 lines)

3.The newest calling ticket number will show on the top of the display receiver.

4.Can put on the Waiting Area for indicate customer.

5.Touch screen and English prompt voice:

   Please number 008 go to counter 8

6.Counter number can be alphabet, such as C

7.Can install on the wall and desk.

8.110V-240V Power supply

9.Working voltage: DC12V

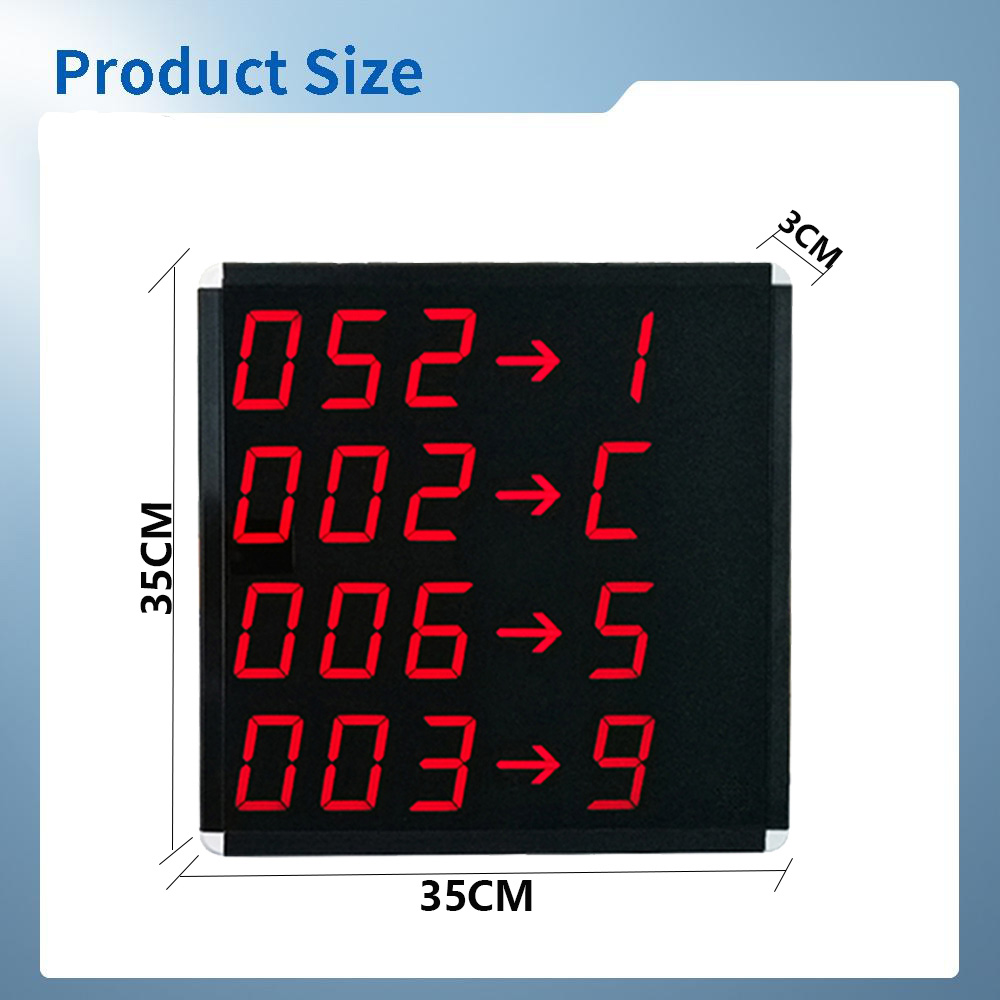

10.Dimension: 35*35*3cm

11.With high strength aluminum alloy shell

K-436-D 产品尺寸.jpg

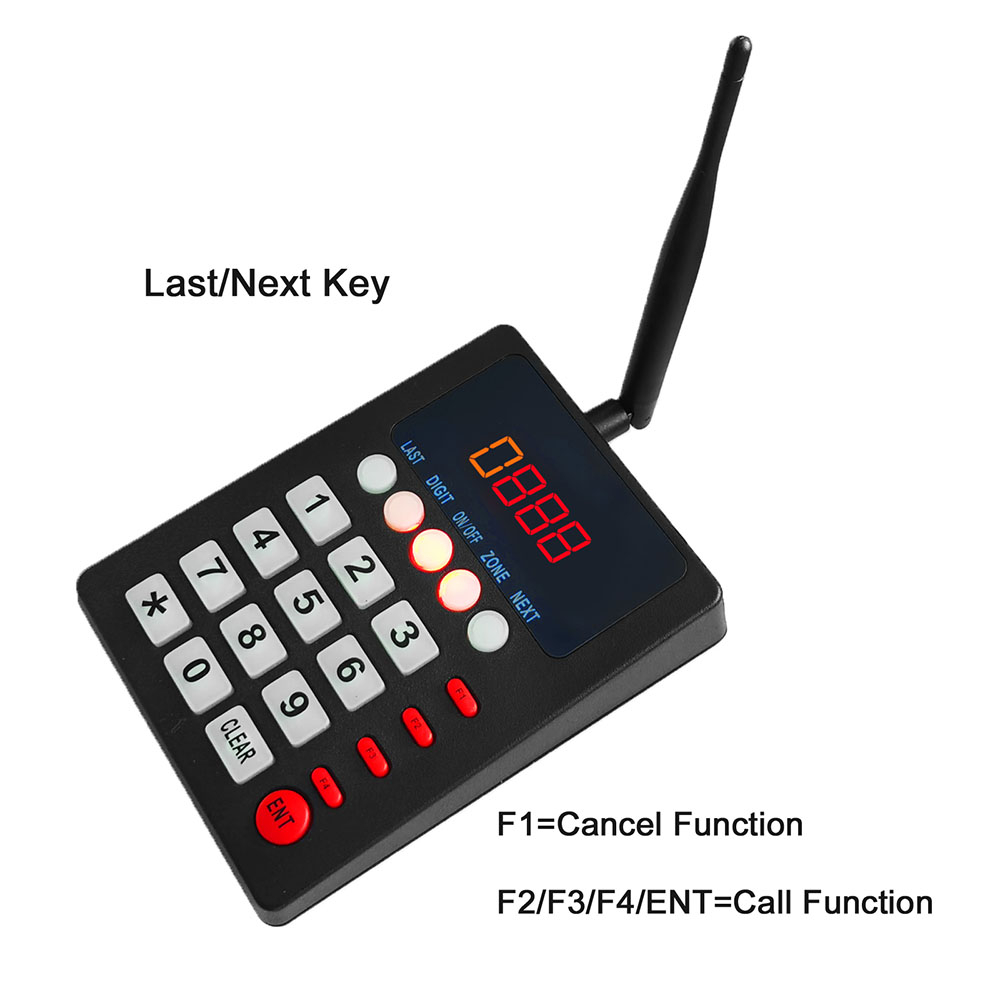

K-999 keyboard specification :

1. With high strength ABS material cover

2. Using digital code technology and the function is steady

3. It can call 999 persons

4. With power on/off function

5. With Clear and Next and Last function

6. Default first number is for counter number and last 3-digit number for customer number


Technical parameters:

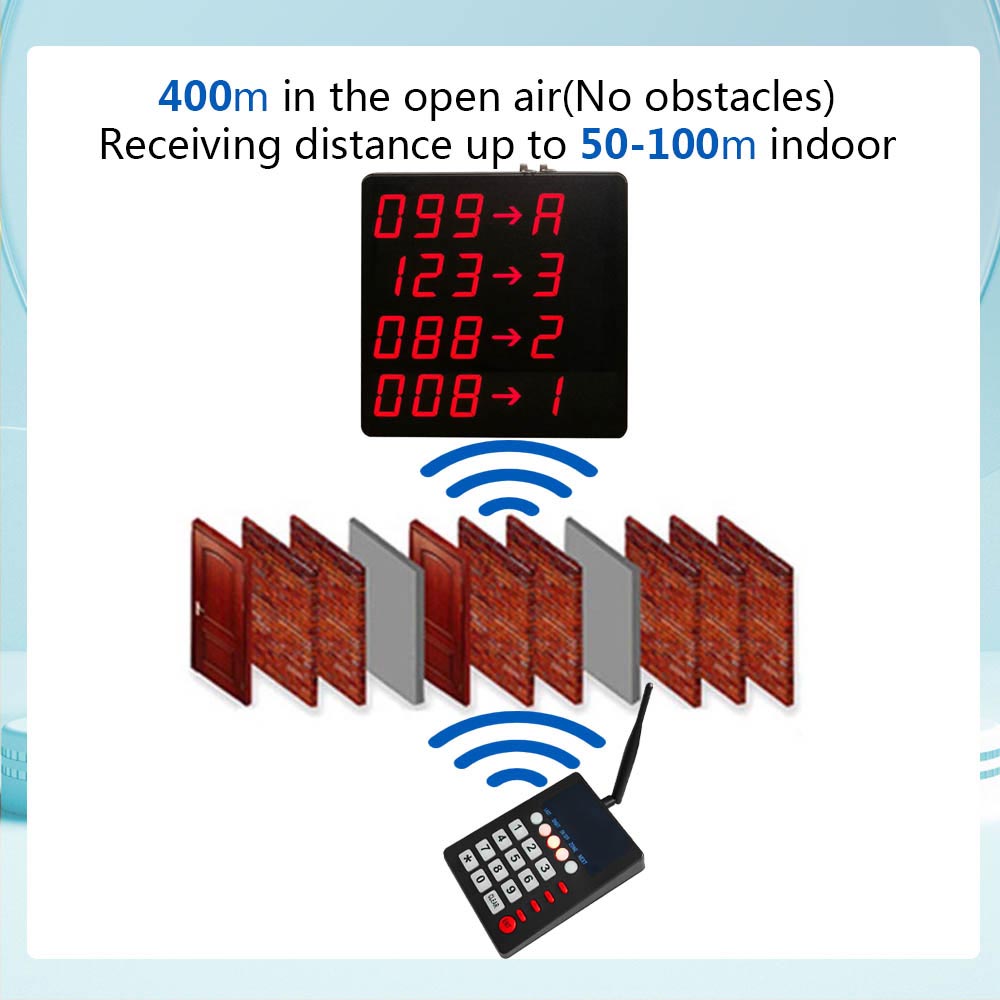

Signal Range: >200m in open area

Working voltage: DC7.5-12V

Working current: <20mA

Dimension:160*118*60mm

new keypad.jpg



K-436-D 999  穿墙.jpg

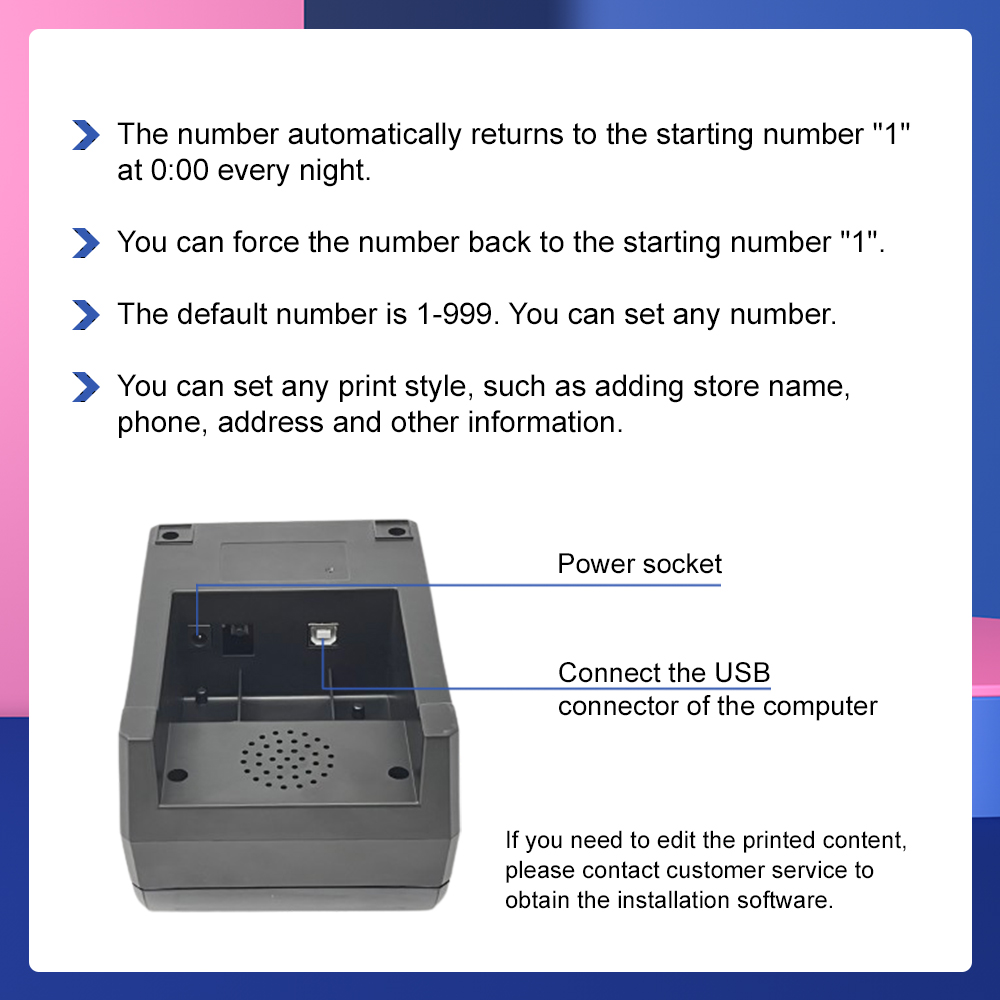

K-TP Thermal Printer (Don't need ink)

1.With high quality polycarbonate for whole shell

2.Can press the button to take a ticket for queue

3.Can print two same number at a time if you need

4.Can show waiting number if you need.

5.Color: black

6.Ticket width: 57mm

7.Working voltage: DC12V

8.Dimension: 20*12*11.5cm
