K-999B K-C31 KTP4 4+1+1 take a number machine
  • 品牌 : Ycall
  • 简介 : K-999B K-C31 KTP4 4+1+1 take a number machine
  • Name : K-999B K-C31 KTP4 4+1+1 take a number machine
  • Model : K-999B K-C31 KTP4 4+1+1

  • product introduction
  • message

k-C31 K-999B.jpg

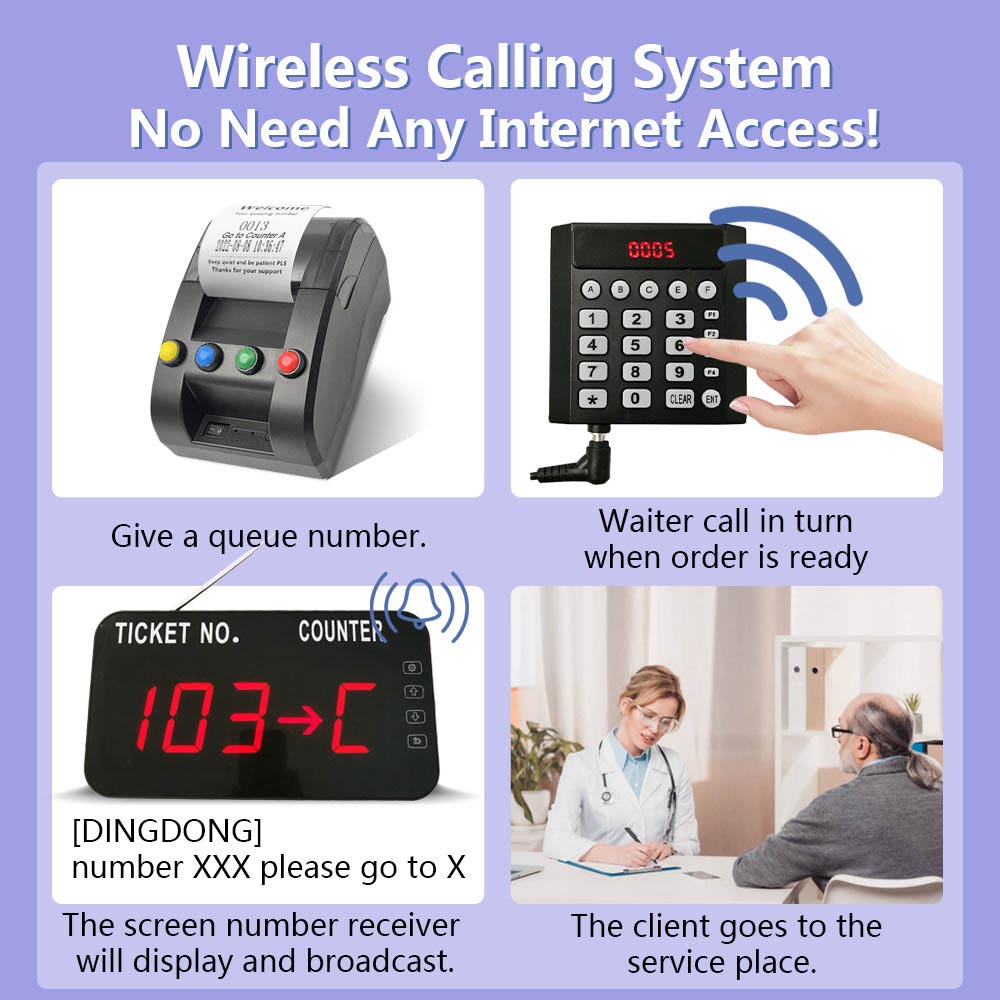

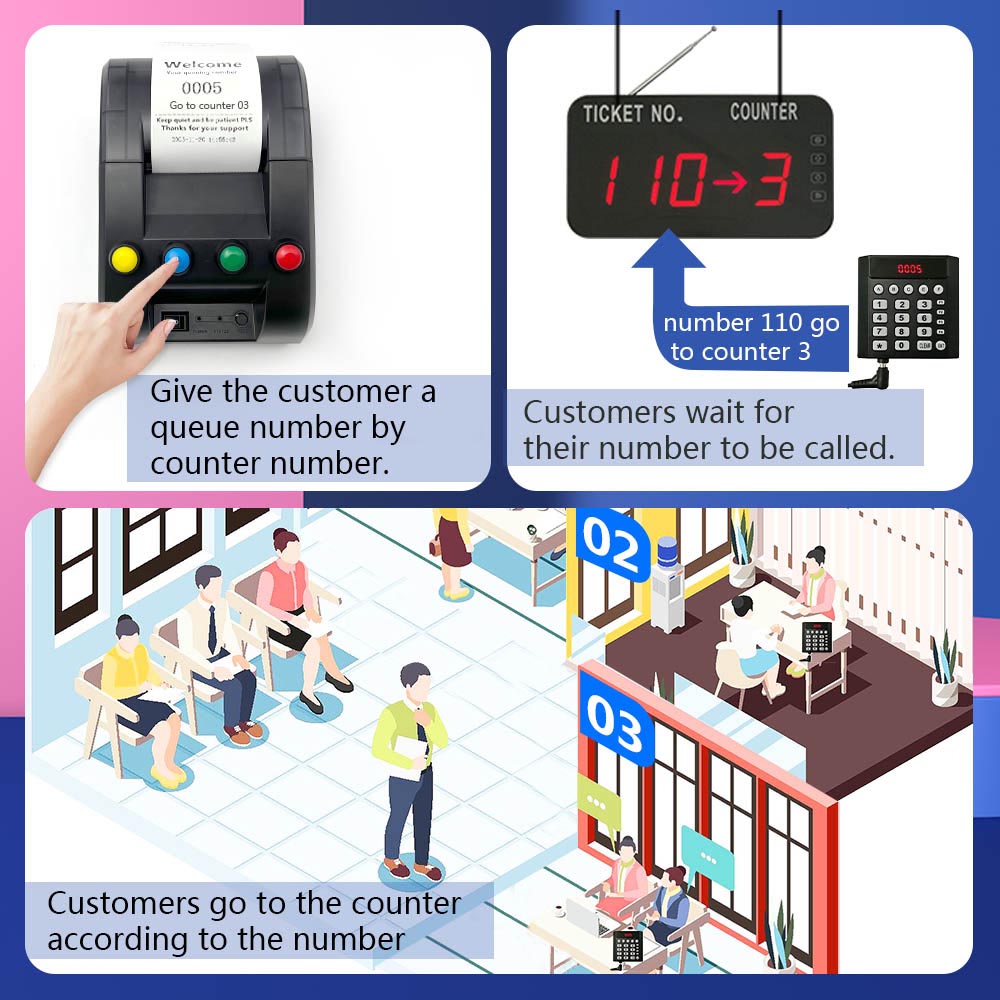

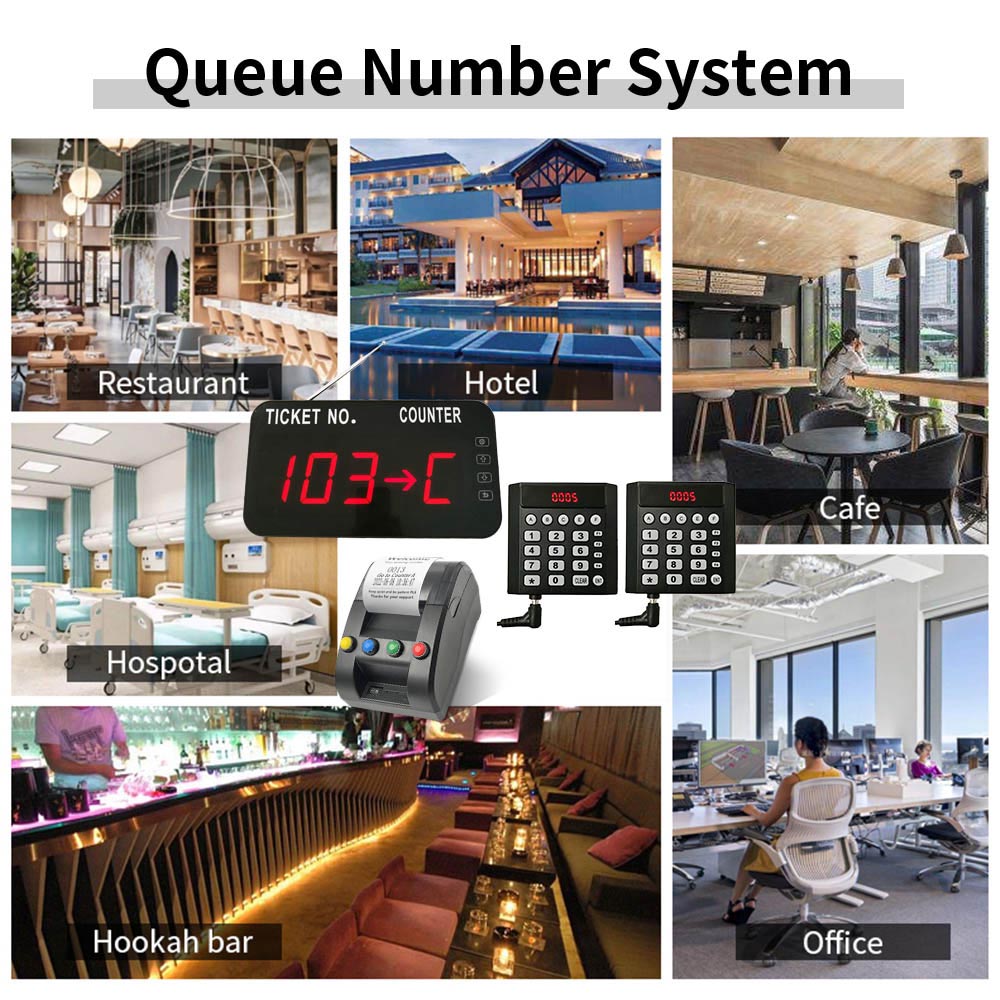

How Queue Management System works?

1. Customer go to the Service station and take a number ticket by Thermal Printer (K-TP).

2. Customer wait for their service.

3. When it is their turn, the counter worker will press the number+ENT to call.

4. The customer's number will show on the display screen with prompt sound, so that customer know which counter they should attend.

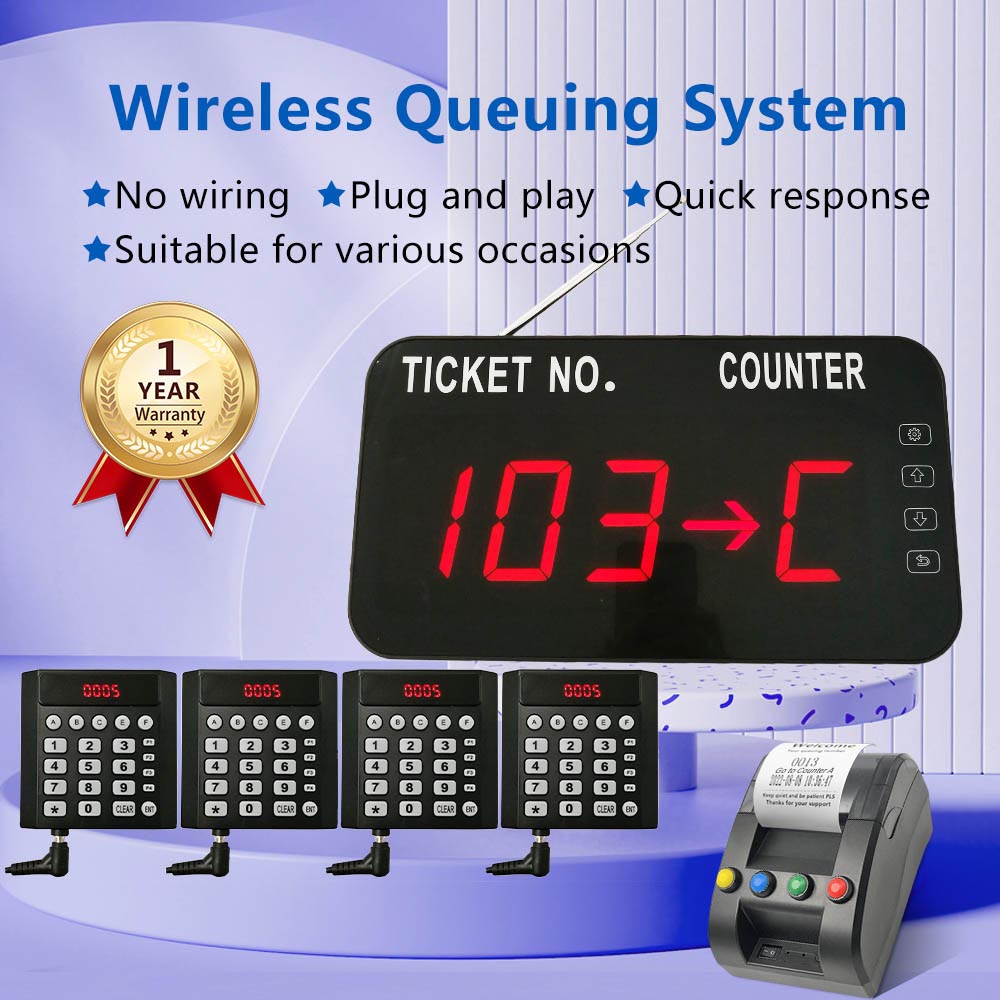

A complete kit includes:

(1) Display Monitor X1

To display ticket number .

(2) Keyboard X4

To call ticket number .

(3)Thermal Printer X1

To make the tickets for the customer

(4) Manual


Features:

1 Applications: Restaurant, Coffee Shop, Fast food Chain, Food Court, KTV, Pub, Service Centre, Clinic, Supermarket.Provides fair, organized, efficient customer service

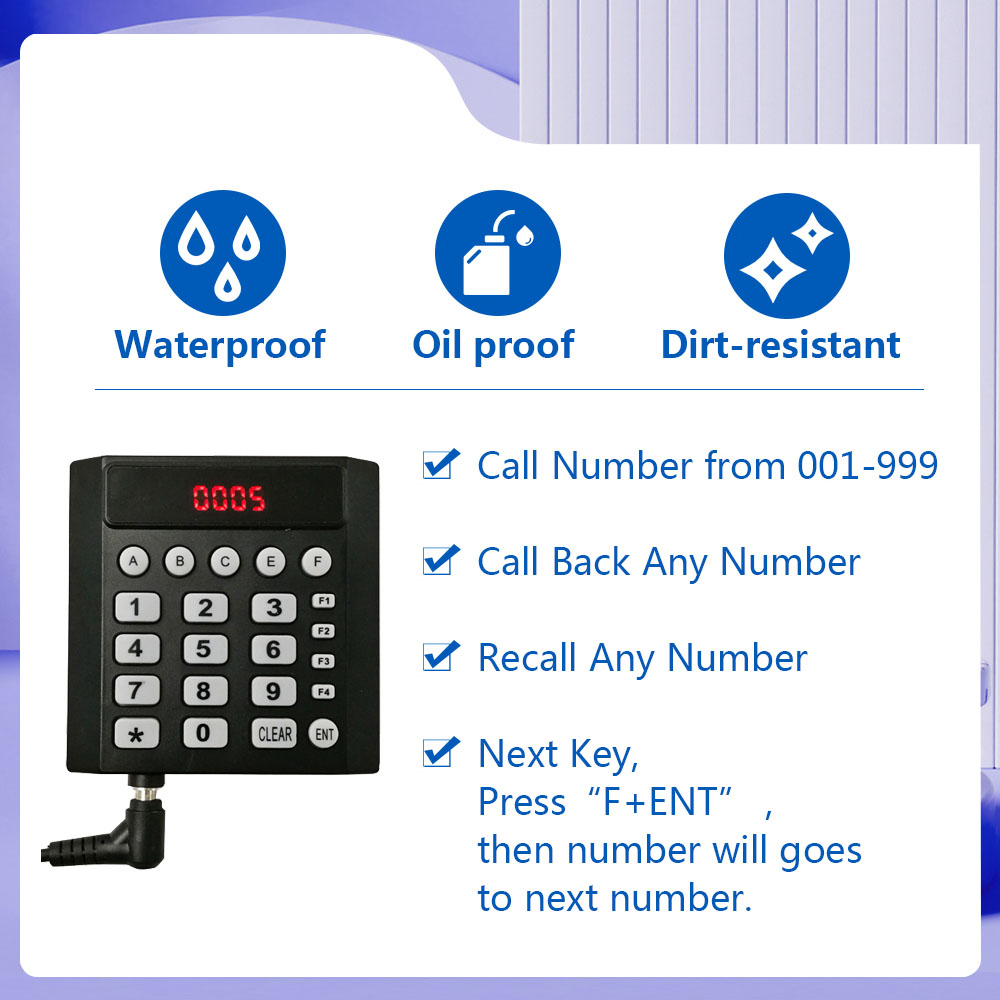

2 It call number from 001-999.It can call back any number and recall any number.It with a next key,press Next+ENT ,then number will goes to next number.

3 Advantage: can avoid to stand in a long queue

K-C31 +999.jpg

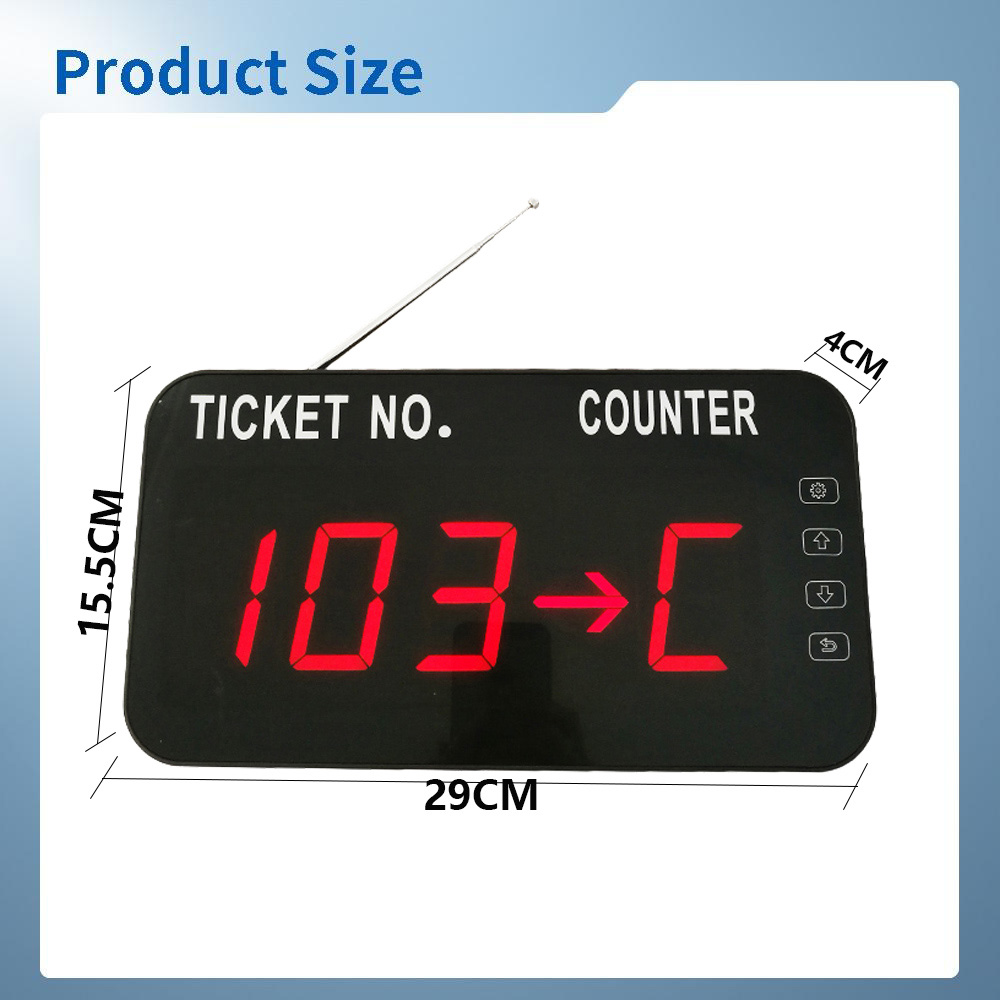

K-C31 display specification :

LED counter display labeled with Counter Number

1.Wireless signal receiver

2.Show 3-digit for display ticket number and 1 digit for counter number

   (1 line, 2 lines and 4 lines)

3.Can put on the Waiting Area for indicate customer.

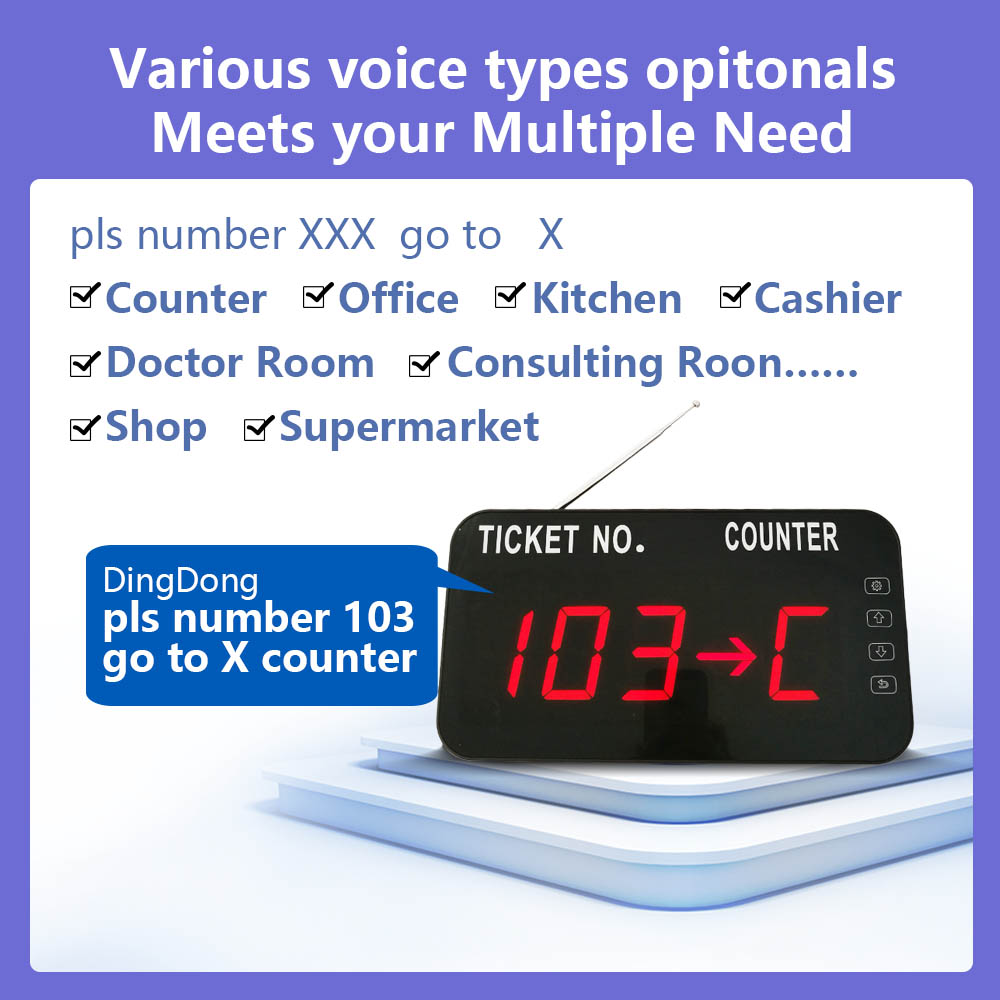

4.Touch screen and English prompt voice:

   Please number 001 go to counter 2.

5.Counter number can be alphabet, such as: C

6.Can install on the wall and desk.

7.110V-240V Power supply

8.Working voltage: DC12V

9.Dimension: 29*15.5*4cm

10.With high strength ABS plastic shell

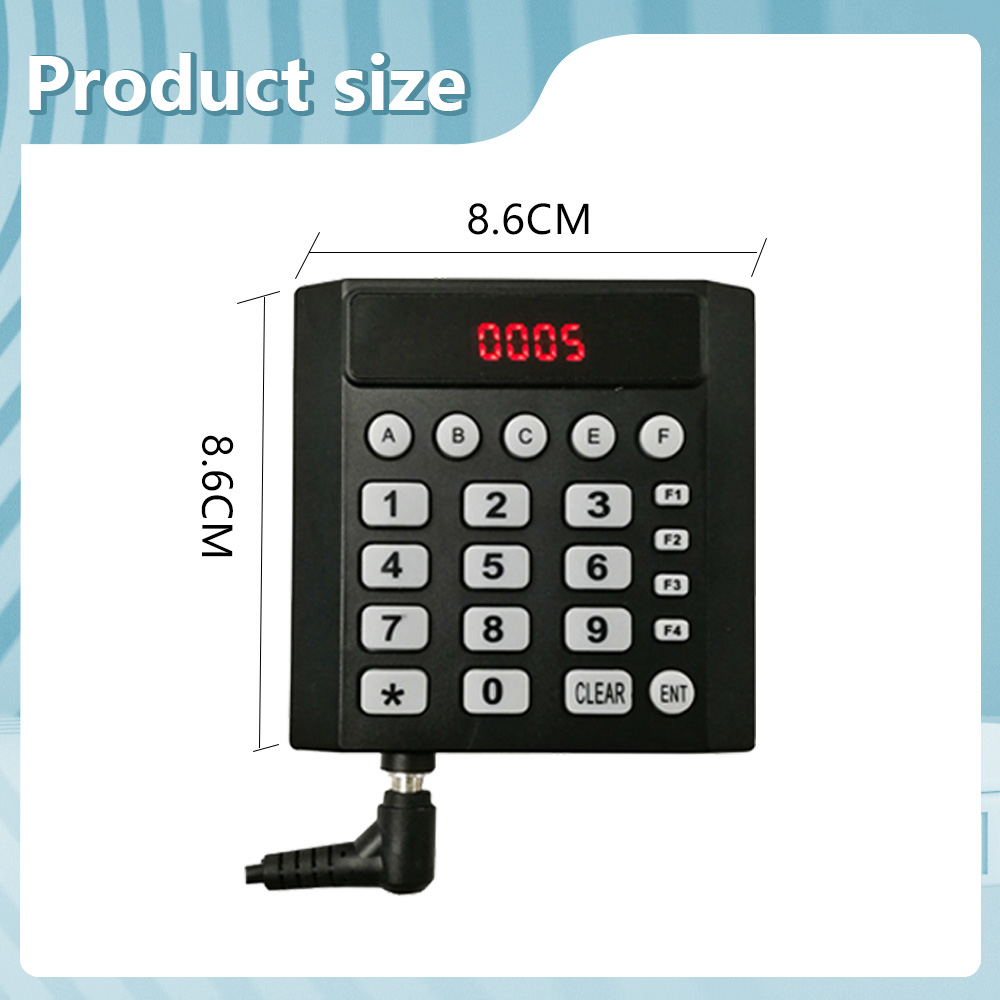

K-999B keyboard specification :

1. With high strength ABS material cover

2. Using digital code technology

3. It can call 999 persons

4. It have 4-digit number: first digit show zone number and last 3-digit number show current number

5. With Clear, Next, Reset function


Technical parameters:

Signal Range: >200M in open area

Working voltage: DC7.5-12V

Working current: <20mA

Dimension: 86*86*20mm

Color: black, white

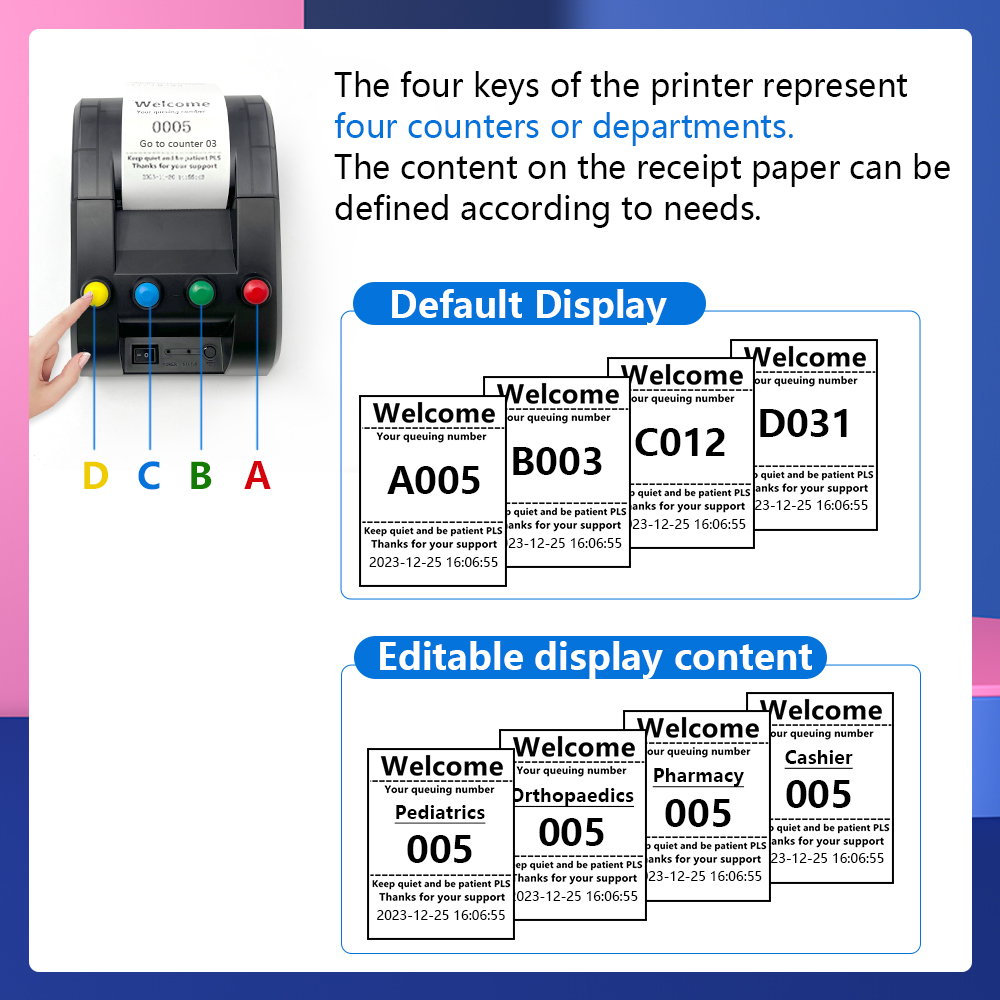

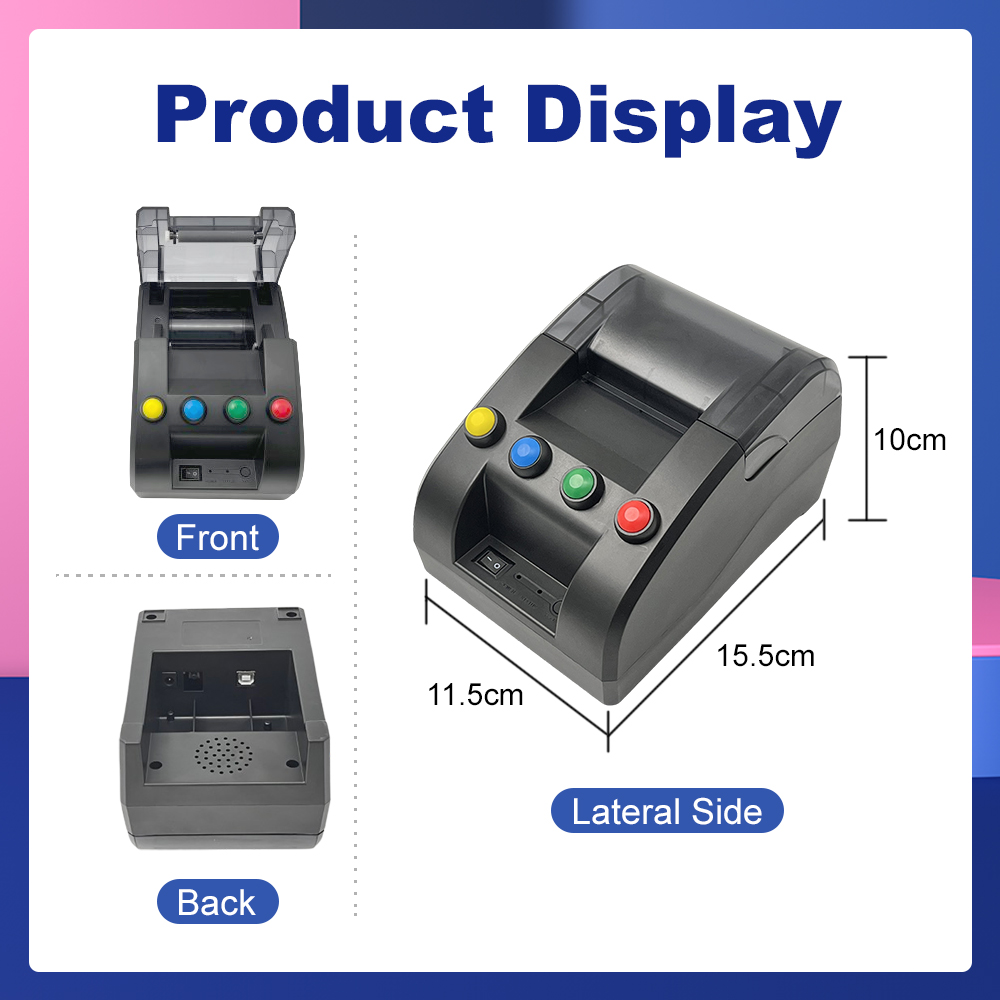

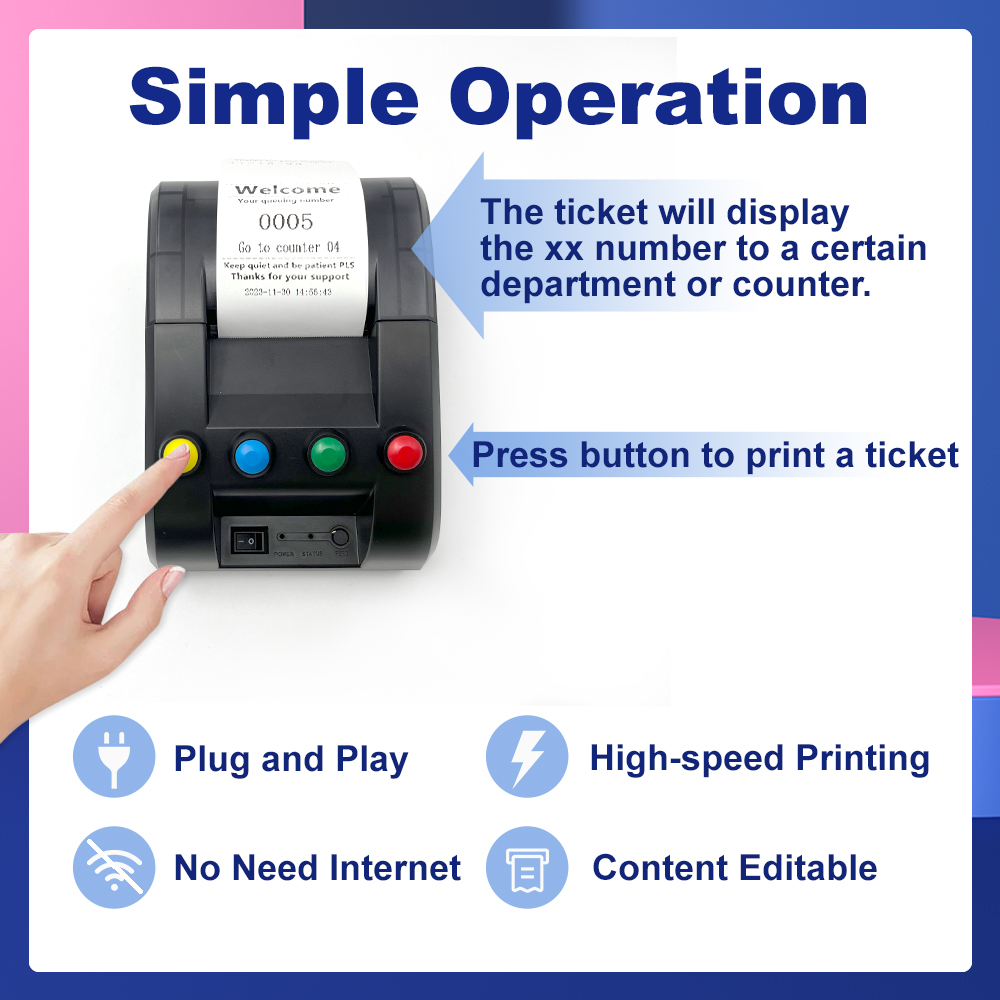

K-TP Thermal Printer (Don't need ink)

1.With high quality polycarbonate for whole shell

2.Can press the button to take a ticket for queue

3.Can print two same number at a time if you need

4.Can show waiting number if you need.

5.Color: black

6.Ticket width: 58mm

7.Working voltage: DC12V

8.Dimension: 15.5*11.5*10cm

9.You can edit the content by software (Right one)
